32 43 inch curved touch screen monitor

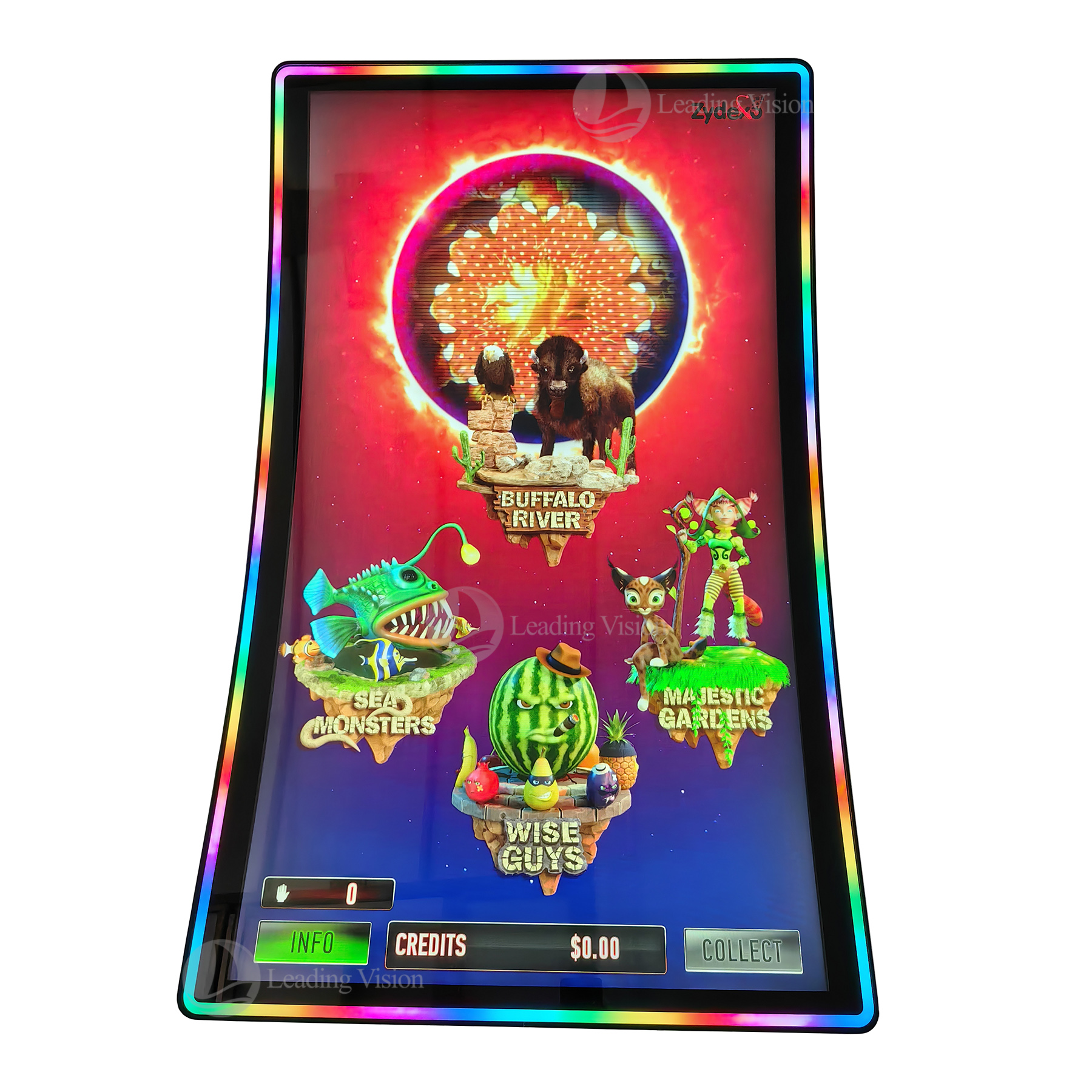

A curved screen large-size 32″/43″ slot gaming monitor with a capacitive touchscreen, with LED lights embedded under glass along the monitor frames. When it is working, the multi colors chasing around the monitor sides with colors switched dynamically, make the monitor much more attractive.
This monitor is used majorly for vertical display 3M/ELO games, like Fire Link, Dragon Link, Buffalo Gold, and many others.

Additional information

Screen Size

32 inch, 43 inch

Screen Resolution

1920*1080

Aspect Ratio

16:9

IO Interface

VGA, DVI, HDMI

Touch Protocol

3M, ELO, HID

Touch Type

Capacitive Touch

Color

Black

Warranty

1-Year

Model Number

LV320GC6, LV430GC6

Product Details:

A curved screen large-size 32″/43″ slot gaming monitor with a capacitive touchscreen, with LED lights embedded under glass along the monitor frames. When it is working, the multi colors chasing around the monitor sides with colors switched dynamically, make the monitor much more attractive.
This monitor is used majorly for vertical display 3M/ELO games, like Fire Link, Dragon Link, Buffalo Gold, and many others.

Applications:

This monitor supports 3M/ELO games, with some of the popular games listed as follows:

  • Fire Link, Lock it Link, Very Cherry, and many other HET PCB board games.
  • Bally Games
  • Aristocrat games(like Buffalo Gold/Max/Chief/Extreme/Diamond/Link, dragon link and other Gen 7, Gen 8 games)
  • Others

Detail Specifications:

>>LCD Panel

  • Screen Size:               32 / 43 inch
  • Screen Resolution:  1920*1080
  • Contrast Ratio:          1000 : 1
  • Brightness:                 350 cd/m2
  • Backlight:                   LED Backlight
  • Colors:                        16.7M
  • Response Time:        5 ms
  • Viewing Angle:          (H) 170°, (V) 165°

>>Touch Panel

  • Touch Signal Input:     USB / RS232
  • Touch Type:                  Capacitive multi touch
  • Touch Sensibility:         > 3mm
  • Touch Intensity:           Over 60,000,000 touch
  • Touch Driver:                Compatible with 3M/ELO/HID protocol

>>Power & Signal

  • Power Supply:               Input: AC 110~240V; Output: DC 12V/4A
  • Power Frequency:        55~75 Hz
  • Power Consumption:   25W
  • Power Plug:                    US / EU / UK / AU,  and others
  • Signal Input:                  RS232, USB, VGA(CGA)/ DVI/HDMI

>>Others

  • Material:                        Metal + Acrylic + Plastic
  • Temperature:               Operating: 0℃~50℃, Storage:-20℃~60℃
  • Humidity:                      Operating: 20% ~ 80%, Storage: 10% ~ 90%
  • Color:                             Black
  • Accessories:                  Power cord & adapter, RS232 cable, VGA cable (DVI optional)
