Flush mount panel mount touch screen monitor

This industrial flush mount (also called panel mount or embedded mount) touch monitor is a specialized display device designed for industrial and commercial environments. It offers touch capabilities, with high durability & reliability. Widely used in industrial automation, interactive navigation & information display, traffic and transportation, retail and catering, healthcare, and other industries.

Additional information

Screen Size

10.4 inch, 14 inch, 15 inch, 15.6 inch, 17 inch, 19 inch, 21.5 inch, 8.4 inch

Screen Resolution

1024*768, 1280*1024, 1280*800, 1366*768, 1440*900, 1920*1080

Aspect Ratio

16:10, 16:9, 4:3, 5:4

Touch Type

Capacitive Multi Touch, No Touch, Resistive touch

Touch Protocol

HID

IO Interface

DVI, HDMI, VGA

Color

Black

Warranty

1-Year

Product Details:

This industrial flush mount (also called panel mount or embedded mount) touch monitor is a specialized display device designed for industrial and commercial environments. It offers touch capabilities, with high durability & reliability. Widely used in industrial automation, interactive navigation & information display, traffic and transportation, retail and catering, healthcare, and other industries.



Detail Specifications:

>>LCD Panel

  • Screen Size:                8.4/10.4/14/15/15.6/17/19/21.5 inch
  • Screen Resolution:   1024*768/ 1280*1024/1440*900/1920*1080
  • Contrast Ratio:          1000 : 1
  • Brightness:                 300 cd/m2 (high brightness optional)
  • Backlight:                   LED Backlight
  • Colors:                        16.7M
  • Response Time:        8 ms
  • Viewing Angle:          (H) 170°, (V) 160°

>>Touch Panel

  • Touch Signal Input:     USB
  • Touch Type:                  PCAP touch / Resistive touch / No touch
  • Touch Response:         < 10ms
  • Touch Hardness:          > 7H
  • Touch Protocol:            HID protocol

>>Power & Signal

  • Power Supply:               Input: AC 110~240V; Output: DC 12V/4A
  • Power Frequency:        55~75 Hz
  • Power Consumption:   25W
  • Power Plug:                    US / EU / UK / AU,  and others

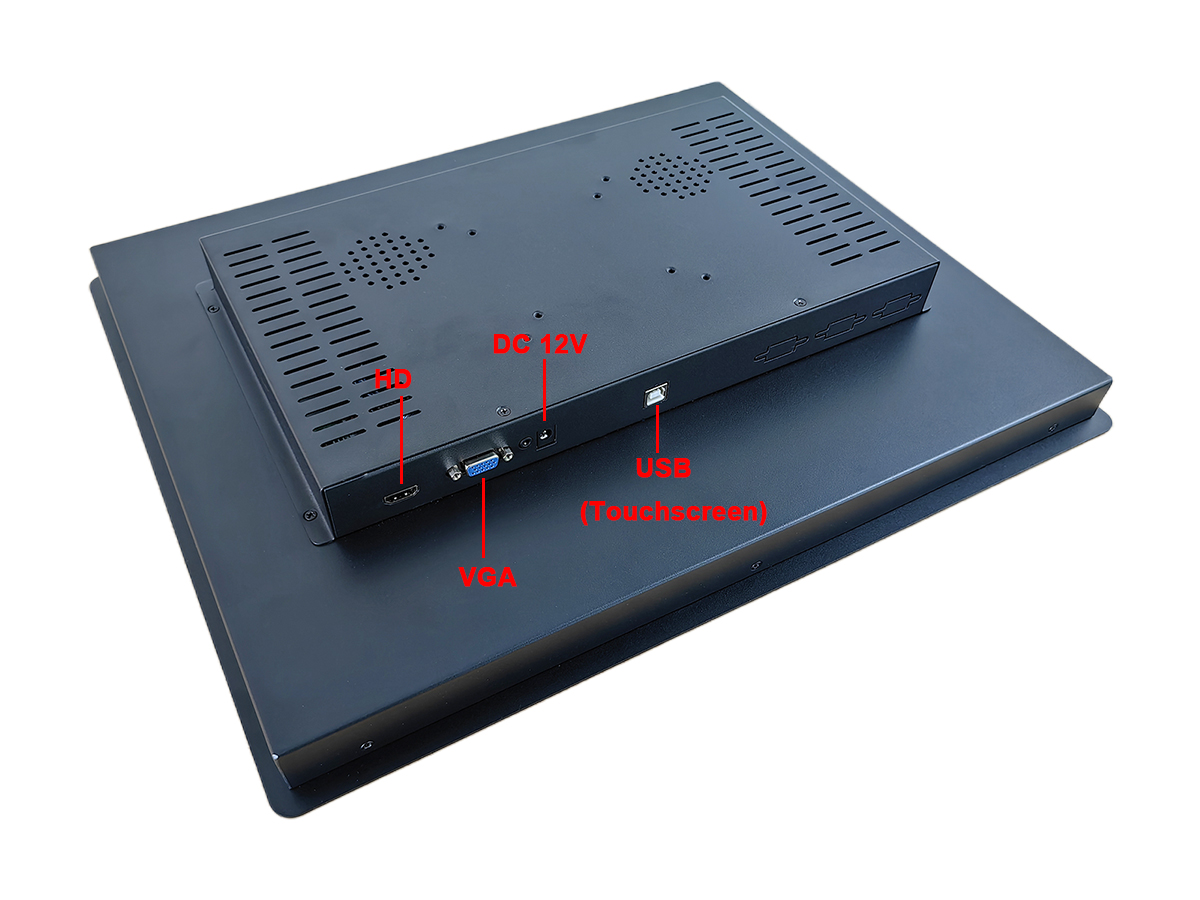

  • Signal Input:                  VGA/ DVI/HDMI

>>Others

  • Appearance:                  Open frame style
  • Material:                        Metal + Glass + Plastic
  • Temperature:               Operating: -10℃~60℃, Storage:-20℃~70℃
  • Humidity:                      Operating: 20% ~ 80%, Storage: 10% ~ 90%
  • Color:                             Black / Silver

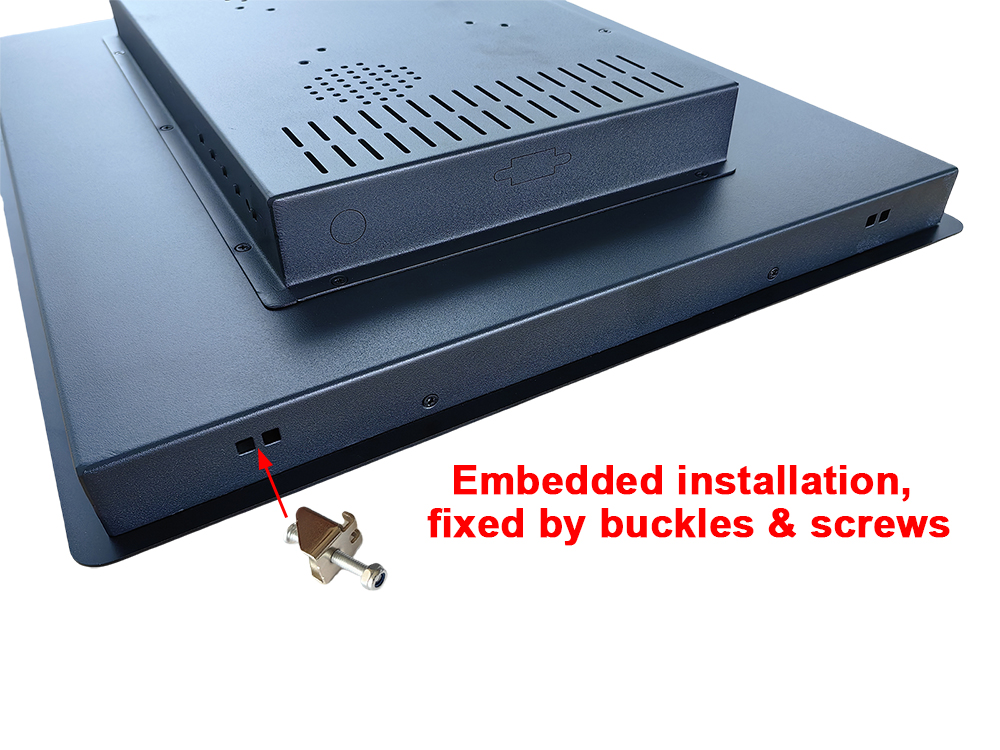

  • Installation:                  Embedded mount / Flush mount / Panel mount / VESA
  • Accessories:                  Power cord & adapter, VGA cable (DVI/HDMI optional)
