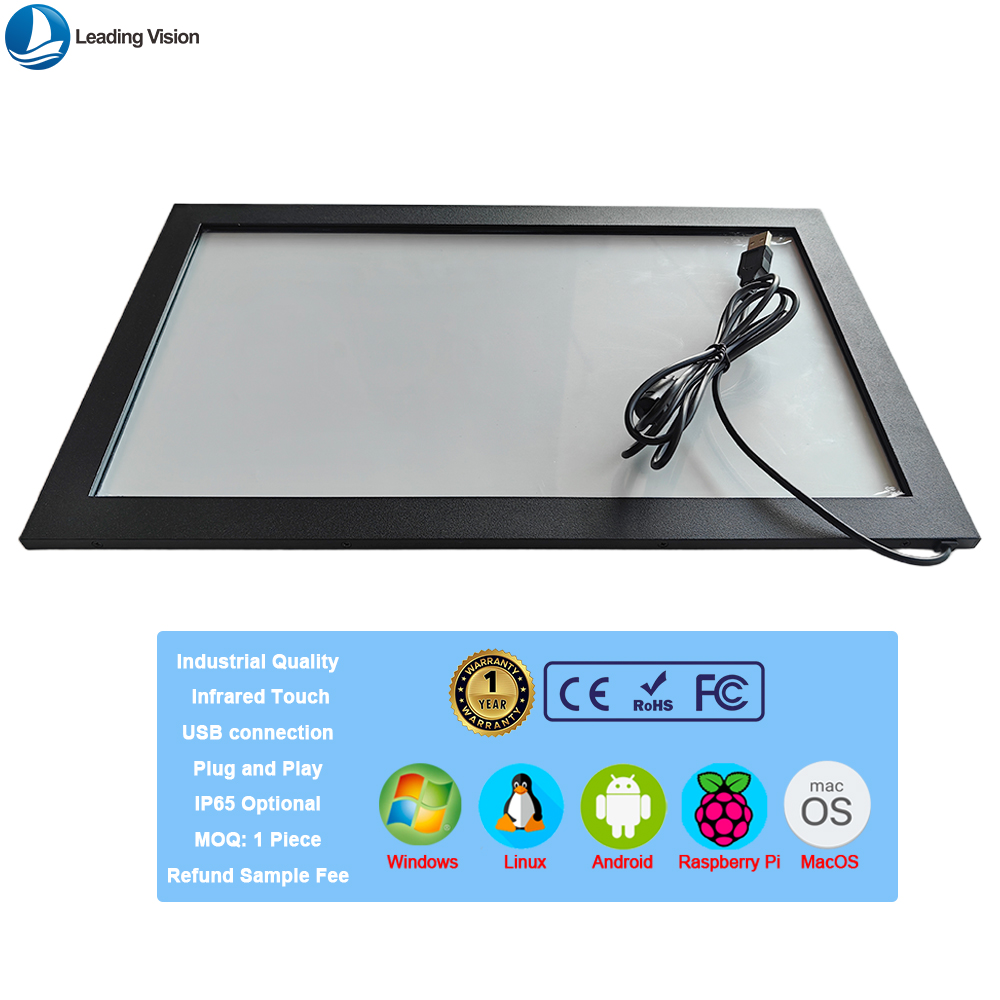

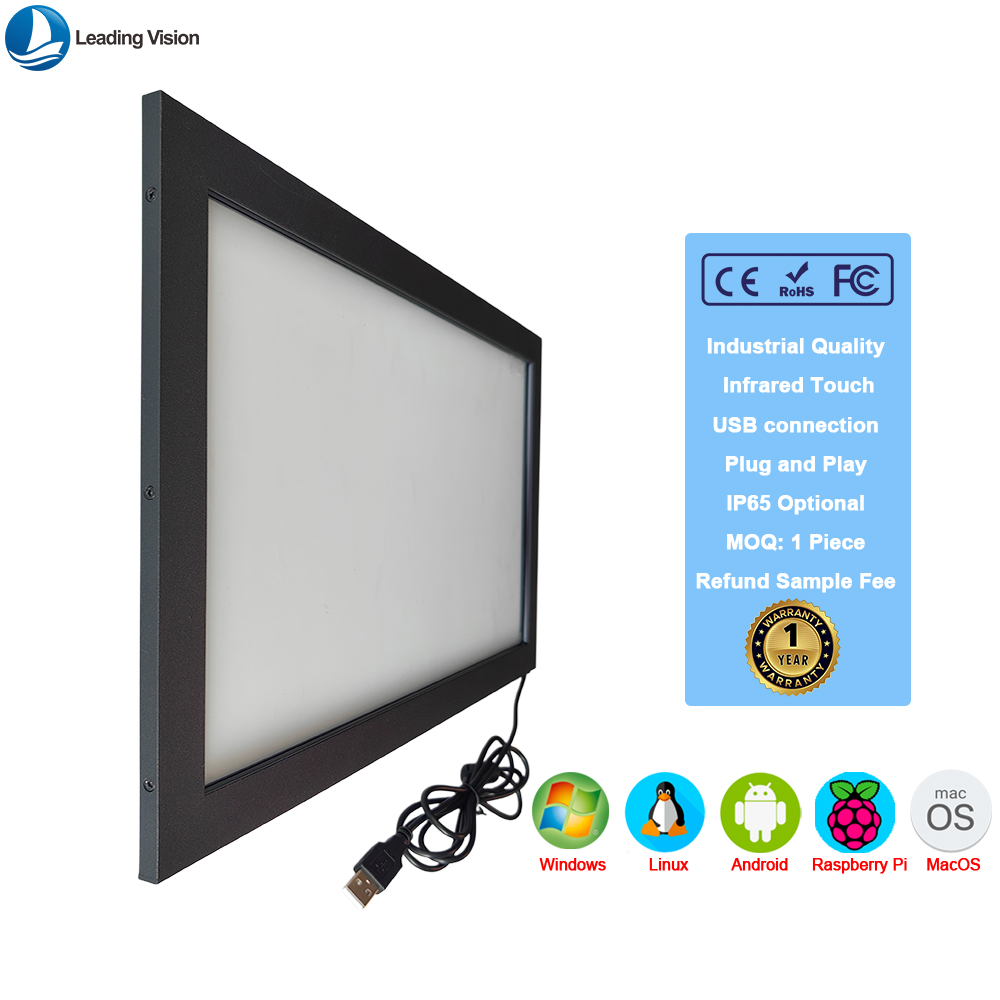

Industrial infrared touch screen

Infrared touch screen is a multi-touch device with high precision and sensitivity, high light transmittance, anti-pollution and durability. It is widely used in self-service terminals, traffic navigation systems, industrial control equipment, education & training & conference terminals. Its advantages in ease of use, reliability and durability make it a popular touchscreen technology.

Additional information

Screen Size

12.1 inch, 15 inch, 15.6 inch, 17 inch, 18.5 inch, 19 inch, 19.5 inch, 21.5 inch, 22 inch, 23.6 inch, 23.8 inch, 24 inch, 26 inch, 27 inch, 32 inch, 43 inch

Aspect Ratio

16:10, 16:9, 4:3, 5:4

Material

Aluminium alloy shell

Touch Type

Infrared Multi Touch

Touch Object

≥5mm

Input Method

Finger, Gloved Hand, Opaque Object

Transparency

≥92%

Resolution

4096*4096

Product Details:

Infrared touch screen is a multi-touch device with high precision and sensitivity, high light transmittance, anti-pollution and durability. It is widely used in self-service terminals, traffic navigation systems, industrial control equipment, education & training & conference terminals. Its advantages in ease of use, reliability and durability make it a popular touchscreen technology.



Detail Specifications:

>>Physical Specs

  • Screen Size:               12.1 inch ~ 43 inch
  • Aspect Ratio :            4:3 / 5:4 / 16:9 / 16:10
  • Touch Type :              Infrared 1/2/4/10/20/40 multi touch

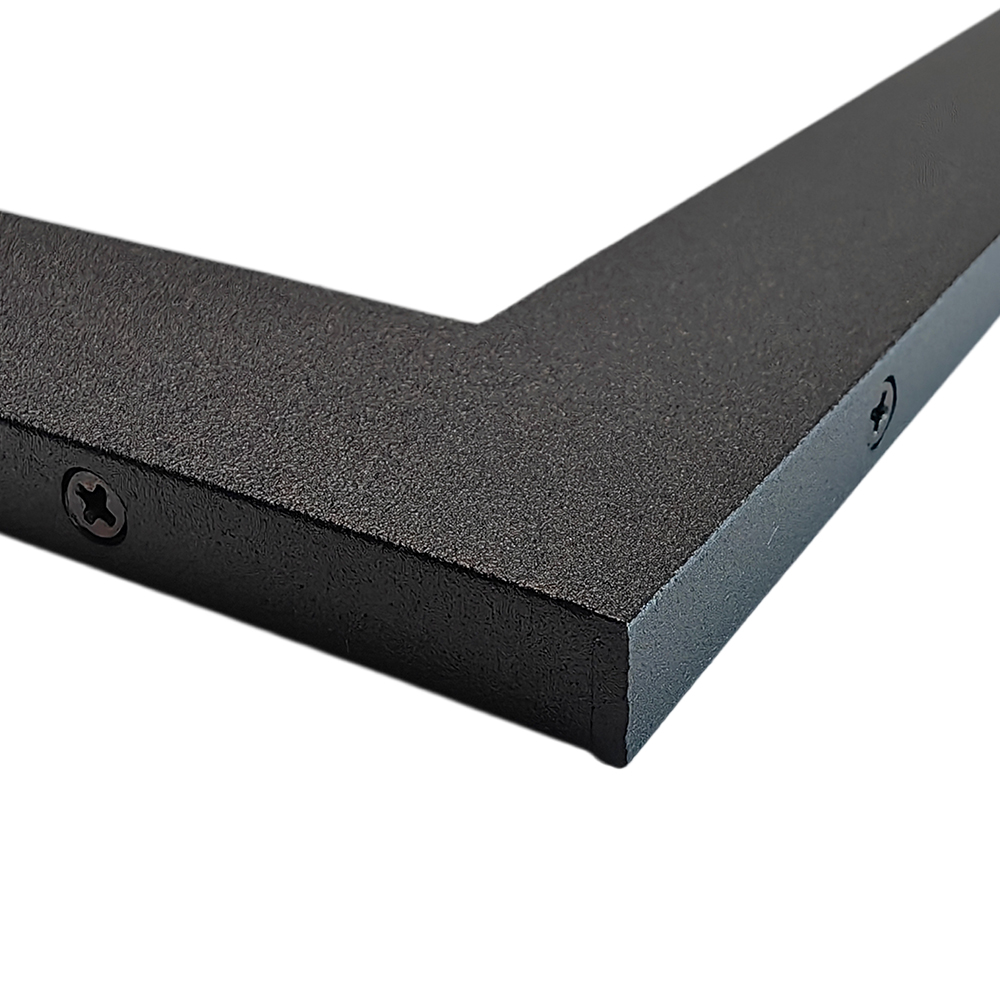

  • Material:                    Aluminium alloy shell
  • Transparency:          ≥92%
  • Touch Object:           >= 5mm
  • Input Method:         Finger, Gloved Hand, or Opaque Object

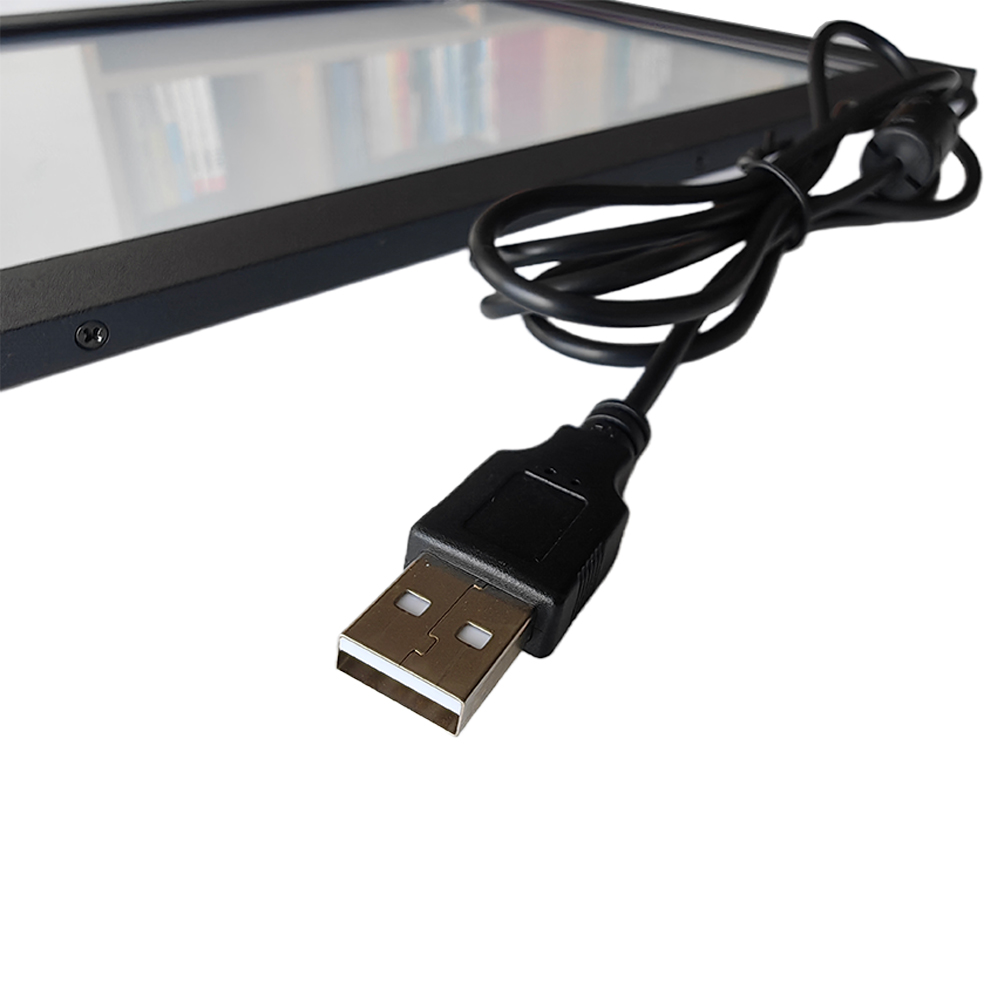

  • USB Cable :              150cm
  • Resolution:               4096*4096
  • Color:                         Black

>>Electrical Specs

  • Power Supply:             USB
  • Scan Frequency :        60Hz
  • Output Format:           Coordinate output
  • Response Time:          < 15ms
  • Working Voltage:        DC +5V+/-5%
  • Operation Current :   < 180mA

>>Environmental Specs

  • Temperature:               Operating: -10℃~55℃, Storage:-20℃~65℃
  • Humidity:                      Operating: 20% ~ 80%, Storage: 10% ~ 90%
  • Light Immunity:           Anti-glare(optional)
  • Waterproof:                  Optional

>>Reliability Specs

  • Touch Times:                  Unlimited
  • Flammability :                UL94V-0

>>Operating System

  • Windows 2000 / Windows XP / Win 7 / Win 8/ Win10 / Windows NT
  • Linux
  • Android
  • Mac OS
