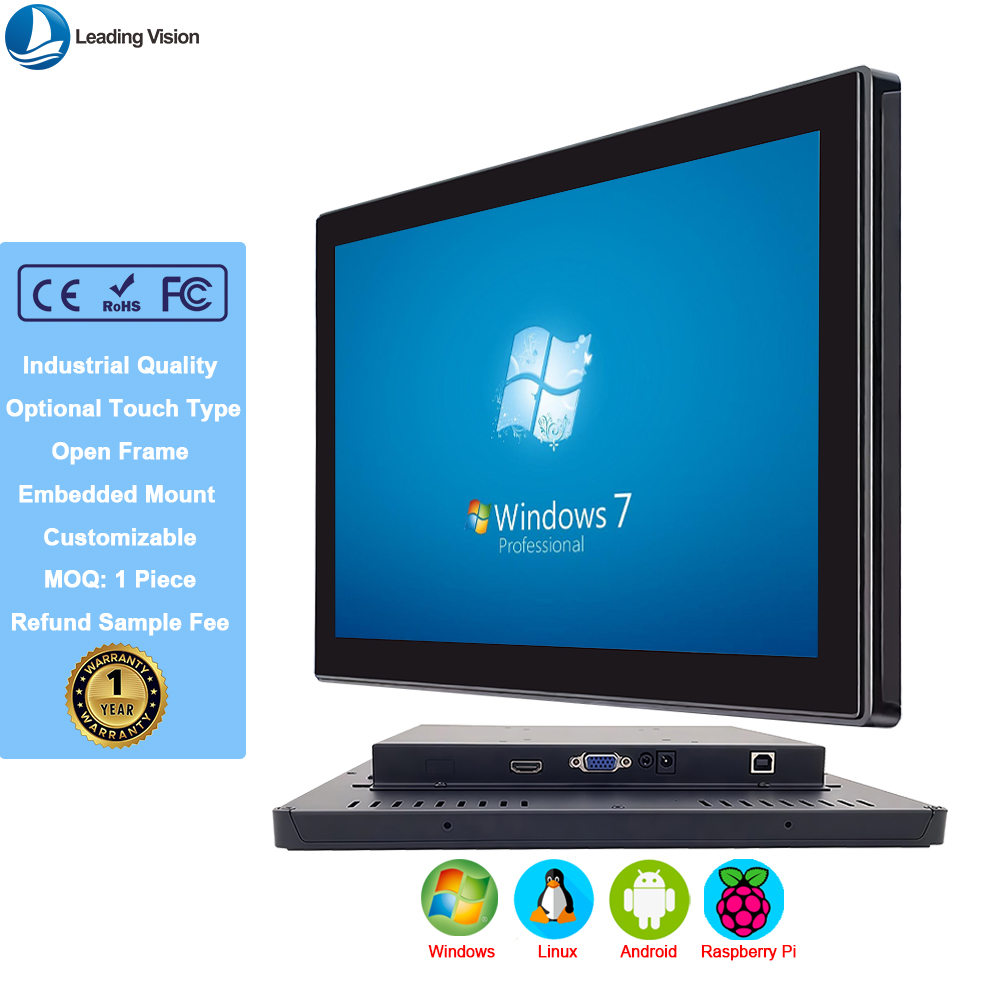

IC2 large open frame touch screen monitor

Category Industrial Touch Monitor Tags 10.1", 12", 13.3", 14", 15.6", 15", 17", 18.5", 19", 21.5", 23.8", 27", 32", 43", 7", 8", Industrial grade, IP65 waterproof, Open frame, PCAP touch, Touch monitor

This industrial open-frame monitor offers versatile sizes (7–43″), touch options, mounting styles, wide temperature tolerance, key certifications, IP65 front-panel protection, and plug-and-play compatibility across major OS. It’s a specialized touch monitor designed for industrial and commercial environments. Widely used in industrial automation, interactive navigation & information display, traffic and transportation, retail and catering, healthcare, and other industries.

Additional information

Screen Size	10.1 inch, 12 inch, 13.3 inch, 15 inch, 15.6 inch, 17 inch, 18.5 inch, 19 inch, 21.5 inch, 23.6 inch, 23.8 inch, 27 inch, 32 inch, 43 inch, 7 inch, 8 inch
Screen Resolution	1024600, 1024768, 12801024, 1280800, 1366768, 19201080, 19201200, 800600
Aspect Ratio	16:10, 16:9, 4:3, 5:4
Touch Type	Capacitive Multi Touch, No Touch
Touch Protocol	HID

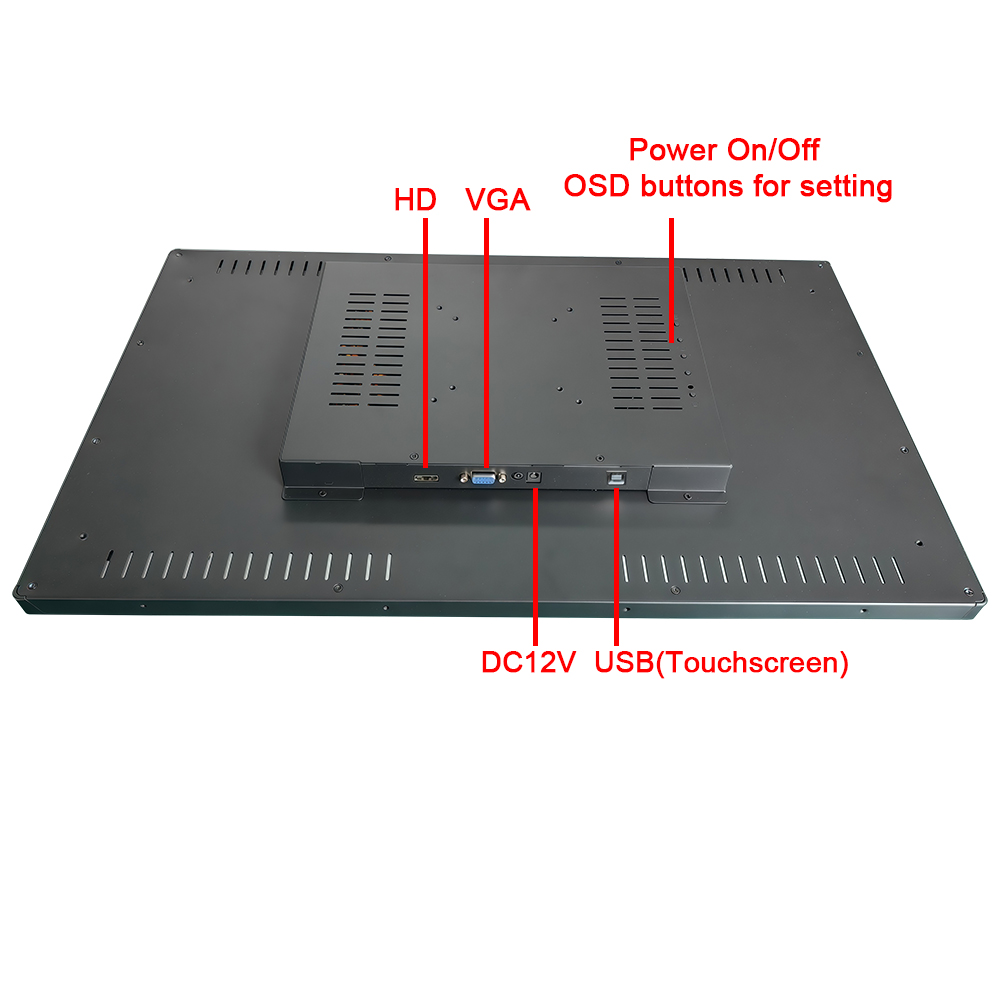

IO Interface	DP, DVI, HDMI, VGA
Color	Black
Warranty	1-Year

Product Details:

Monitor Highlights

Popular sizes range from 7 to 43 inch.
Touch options: Capacitive Touch, Resistive Touch, No Touch.

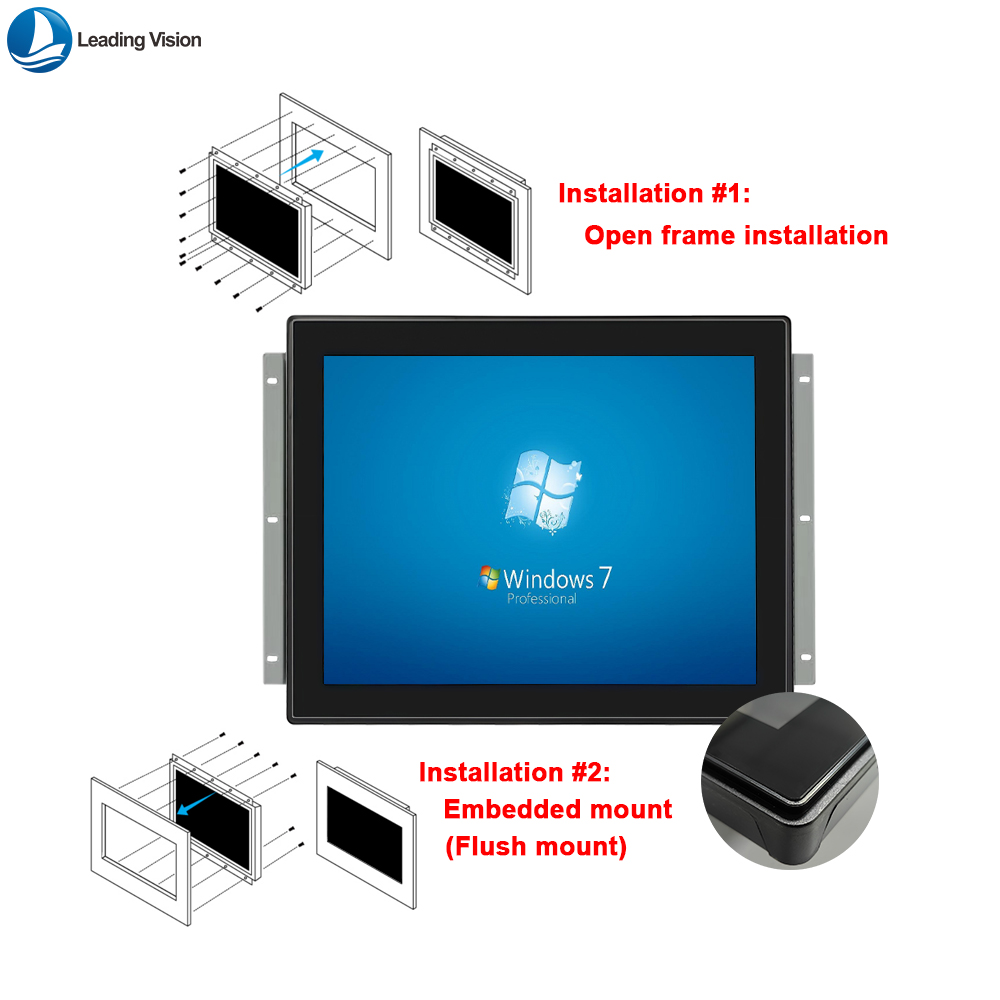

Support multiple installations: Embedded mount (inside), open frame, Wall mount, Desktop.
Working temperature:-10-60°.
Certificates: CE, EMC, ROHS, FCC.

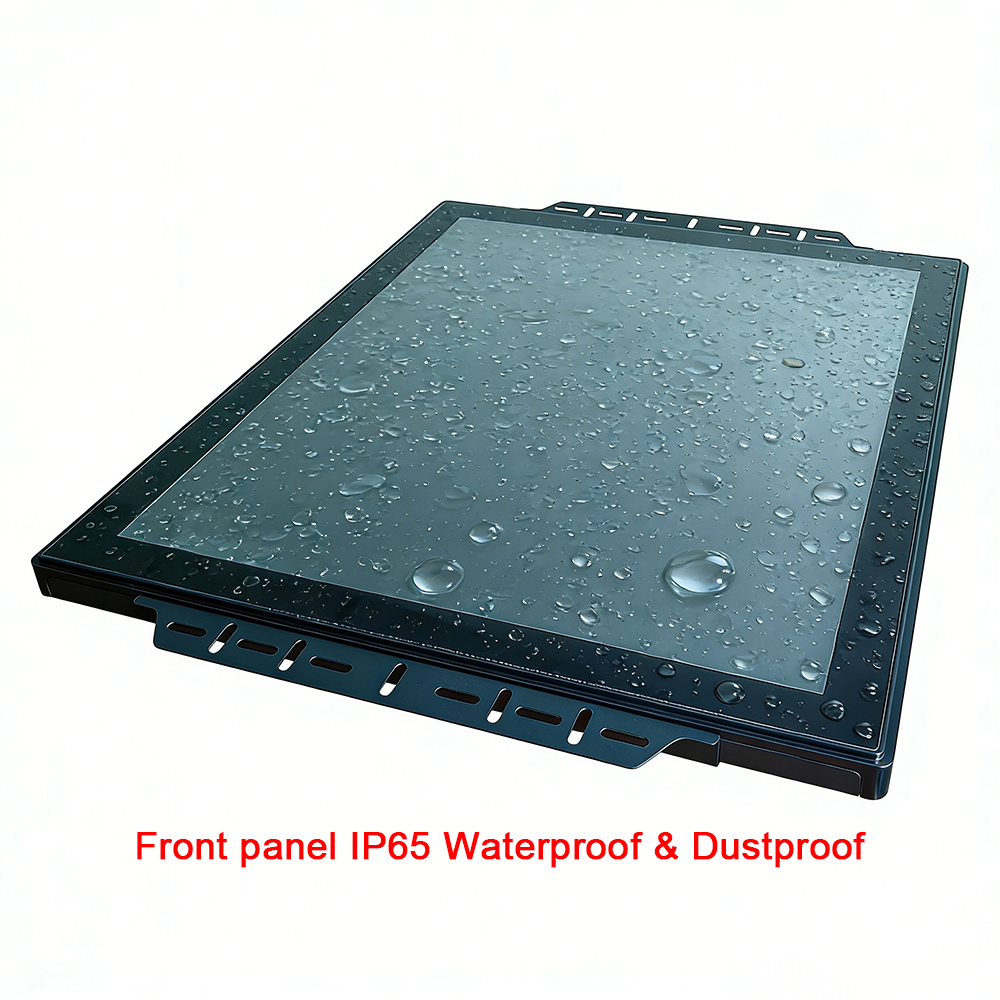

IP grade: Front Panel IP65 Waterproof & dustproof.
Plug-and-play for Win7/Win8/Win10/Win11/Android/Linux/Mac OS.

Detailed Specifications:

>>LCD Panel

Screen Size: 7″, 8″, 10.1″, 12.1″, 13.3″, 15″, 15.6″, 18.5″, 19″, 21.5″, 23.6″, 23.8″, 27″, 32″, 43″
Screen Resolution: 800*600 / 1024*768/ 1280*1024 / 1920*1080
Contrast Ratio: 1000 : 1
Brightness: 350 cd/m2 (600nits / 1000nits optional)
Backlight: LED Backlight
Colors: 16.7M
Response Time: 5 ms
Viewing Angle: (H) 170°, (V) 160°

>>Touch Panel

Touch Signal Input: USB
Touch Type: Capacitive 10-point multi-touch (No touch optional)
Touch Response: < 10ms
Touch Hardness: > 7H
Touch Protocol: HID protocol

>>Power & Signal

Power Supply: Input: AC 110~240V; Output: DC 12V/4A
Power Frequency: 55~75 Hz
Power Consumption: 25W
Power Plug: US / EU / UK / AU, and others
Signal Input: VGA/ DVI/HDMI

>>Others

Appearance: Open frame style
Material: Metal + Glass + Plastic
Temperature: Operating: -10℃~60℃, Storage:-20℃~70℃
Humidity: Operating: 20% ~ 80%, Storage: 10% ~ 90%
Color: Black / Silver
Installation: Open frame side brackets / VESA
Accessories: Power cord & adapter, VGA cable (DVI/HDMI optional)
