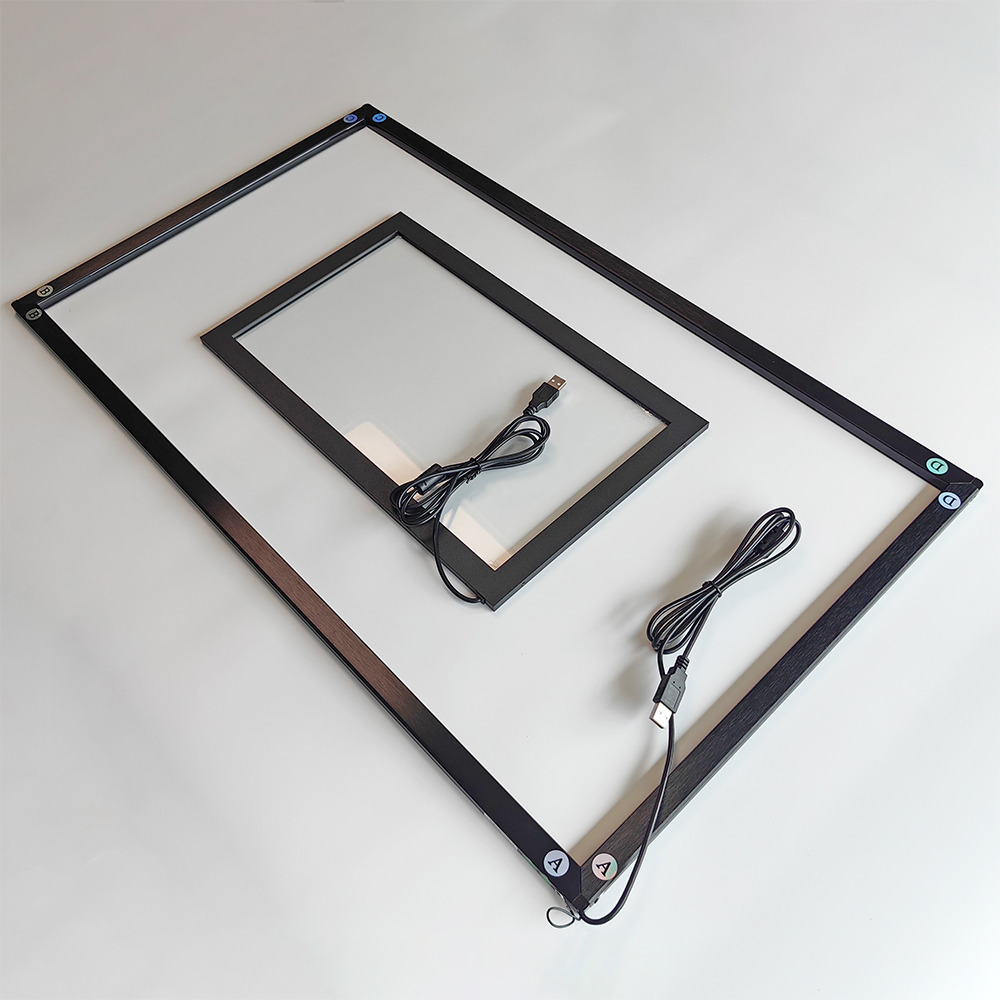

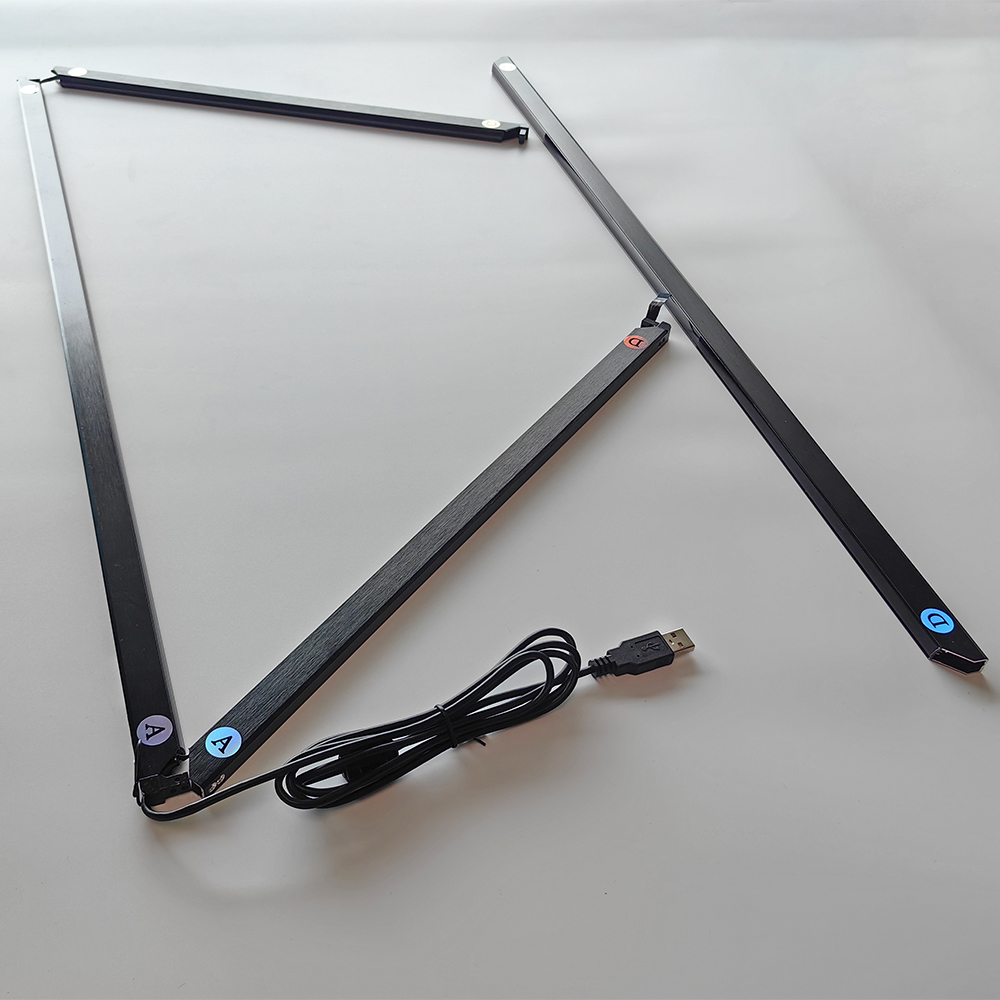

Infrared touch frame kit overlay

IR multi-touch frame highlights:

• Popular sizes range from 22-inch to 100-inch, and support customized sizes.
• Touch options: Infrared Multi Touch (10/20/40 points).
• Support multiple OS: Windows, Linux, Android, Mac, Raspberry Pi (Plug & Play/Driver-free).
• Working temperature:-10-50°
• Certificates: CE, EMC, ROHS, FCC.

Detailed Specifications:

>>Physical Specs

• Screen Size:               22 ~ 100 inch (customized size optional)
• Aspect Ratio :            4:3 / 5:4 / 16:9 / 16:10
• Touch Type :              10/20/40 points infrared multi-touch

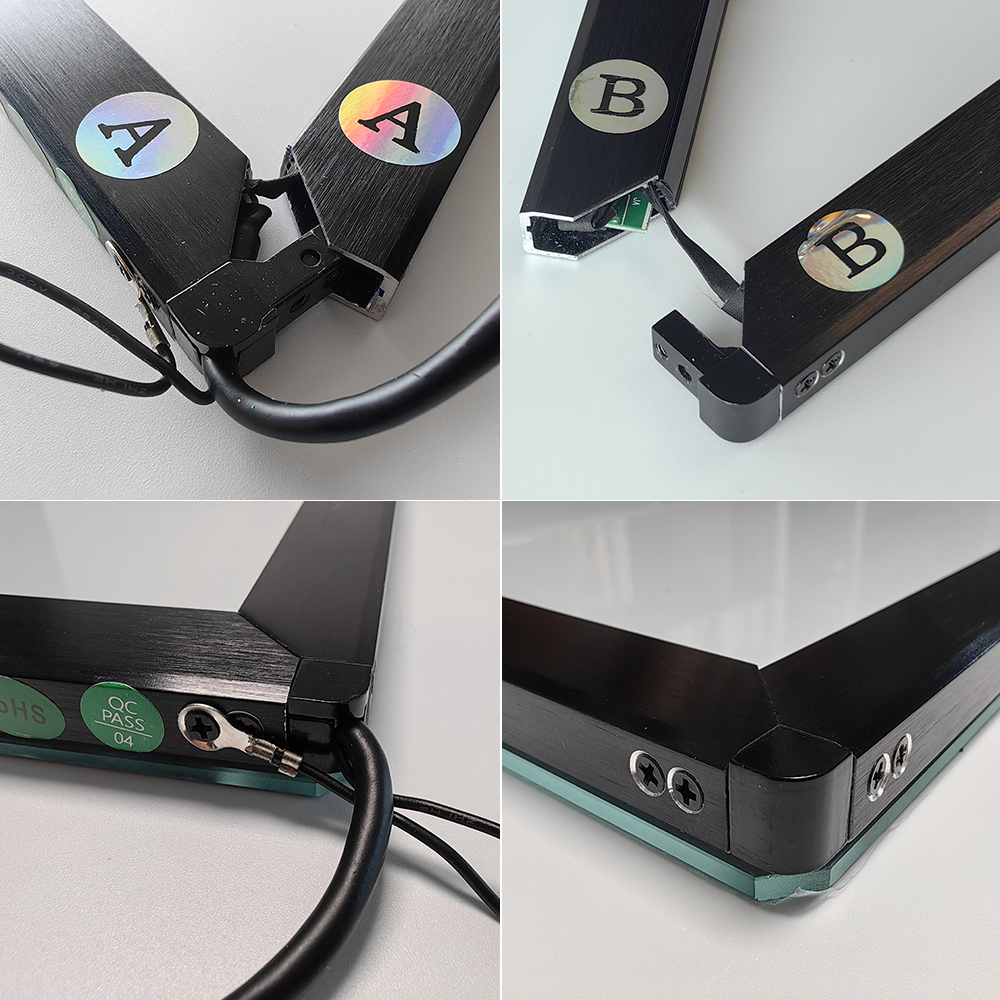

• Material:                    Aluminium alloy shell
• Touch Object:           >= 2.5mm
• Input Method:          Finger, Gloved Hand, or Opaque Object
• USB Cable :              150cm
• Resolution:               32768*32768
• Color:                         Black

>>Electrical Specs

• Interface Type:            USB 2.0
• Scan Frequency :        60Hz
• Output Format:           Coordinate output
• Response Time:          < 10ms
• Working Voltage:        DC +5V+/-5%
• Operating Current :   < 500 mA
• Power Supply:             USB

>>Environmental Specs

• Temperature:               Operating: -10℃~50℃, Storage:-20℃~60℃
• Humidity:                      Operating: 20% ~ 80%, Storage: 10% ~ 90%
• Light Immunity:           Anti-glare(optional)
• Waterproof:                  Optional

>>Operating System

• Windows XP (single touch); Win 7 / Win 8/ Win10 / Windows 11 (multi touch)
• Linux (Ubuntu 12.04 and above (kernel 3.5 or later))
• Android (Android5 and above)
• Mac (Mac 10.8 and above)
