IR0 Open frame resistive touch screen monitor

Category Industrial Touch Monitor Tags 10.1", 10", 11.6", 12", 13.3", 14", 15.6", 15", 17.3", 17", 18.5", 19", 21.5", 8", 9.7", Industrial grade, IP65 waterproof, No touch, Open frame, PCAP touch, Resistive touch, Touch monitor

Resistive open-frame touch monitors support gloved-hand and stylus input, ensuring reliable operation in demanding settings.

They are widely used in industrial, medical, and public-access applications where durability and cost efficiency matter.

Additional information

Screen Size	10 inch, 10.1 inch, 11.6 inch, 12 inch, 13.3 inch, 14 inch, 15 inch, 15.6 inch, 17 inch, 17.3 inch, 18.5 inch, 19 inch, 21.5 inch, 8 inch, 9.7 inch
Screen Resolution	1024600, 1024768, 12801024, 1280800, 1366768, 1440900, 19201080, 800600
Aspect Ratio	16:10, 16:9, 4:3, 5:4
Touch Type	Capacitive Multi Touch, No Touch, Resistive touch
Touch Protocol	HID
IO Interface	DVI, HDMI, VGA
Color	Black
Warranty	1-Year

Product Details:

Monitor Highlights

Popular sizes range from 8 to 21.5 inch.
Touch options: Capacitive Touch, Resistive Touch, No Touch.
Support multiple installations: Open frame, Wall mount, Desktop.
Working temperature:-10-60°.
Certificates: CE, EMC, ROHS, FCC.
Plug-and-play for Win7/Win8/Win10/Win11/Android/Linux/Mac OS.

Detailed Specifications:

>>LCD Panel

Screen Size: 8/9.7/10/10.1/11.6/12/13.3/14/15/15.6/17/ 17.3/18.5/19/21.5 inch
Screen Resolution: 800*600/1024*600/1024*768/ 1280*800/1280*1024/1366*768/1440*900/1920*1080
Contrast Ratio: 1000 : 1
Brightness: 300 cd/m2 (high brightness optional)
Backlight: LED Backlight
Colors: 16.7M
Response Time: 8 ms
Viewing Angle: (H) 170°, (V) 160°

>>Touch Panel

Touch Signal Input: USB
Touch Type: Resistive/PCAP touch, No touch
Touch Response: < 10ms
Touch Hardness: > 7H
Touch Protocol: HID protocol

>>Power & Signal

Power Supply: Input: AC 110~240V; Output: DC 12V/4A
Power Frequency: 55~75 Hz
Power Consumption: 25W
Power Plug: US / EU / UK / AU, and others

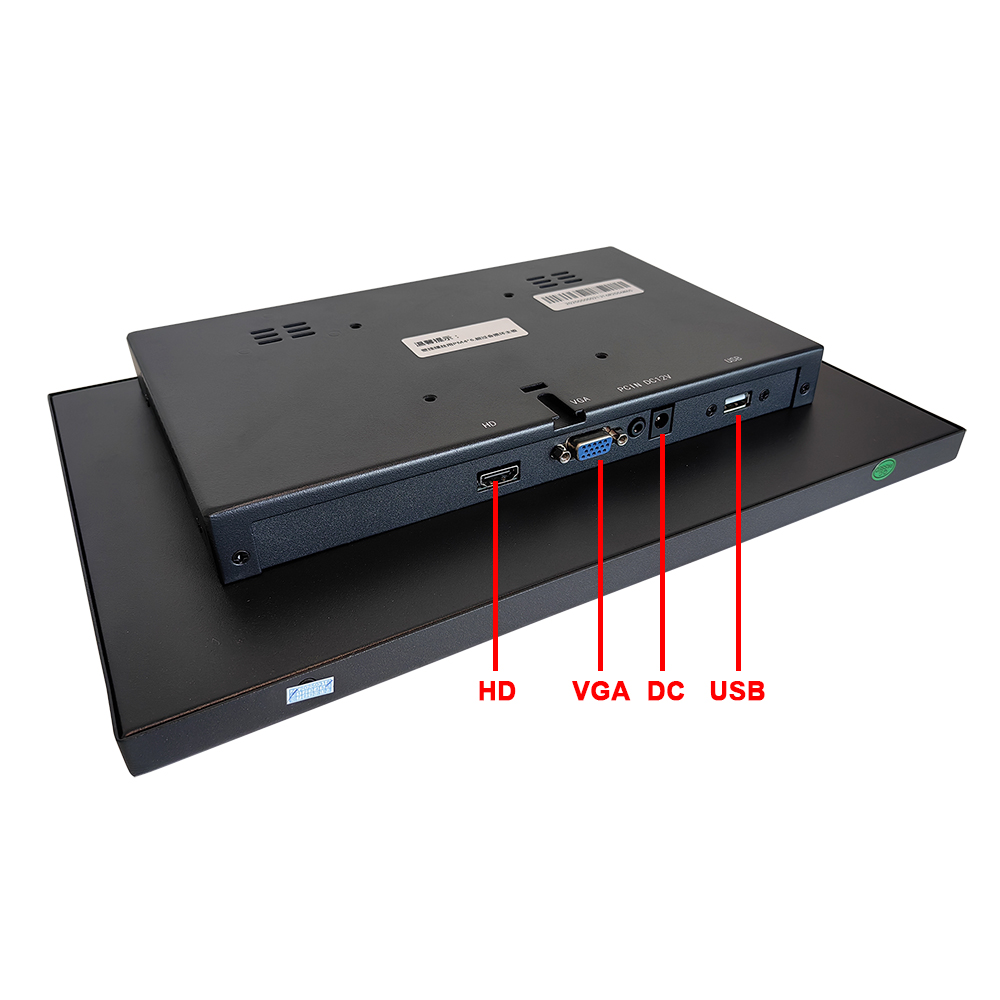

Signal Input: VGA/ DVI/HDMI

>>Others

Appearance: Open frame style
Material: Metal + Glass + Plastic
Temperature: Operating: -10℃~60℃, Storage:-20℃~70℃
Humidity: Operating: 20% ~ 80%, Storage: 10% ~ 90%
Color: Black / Silver

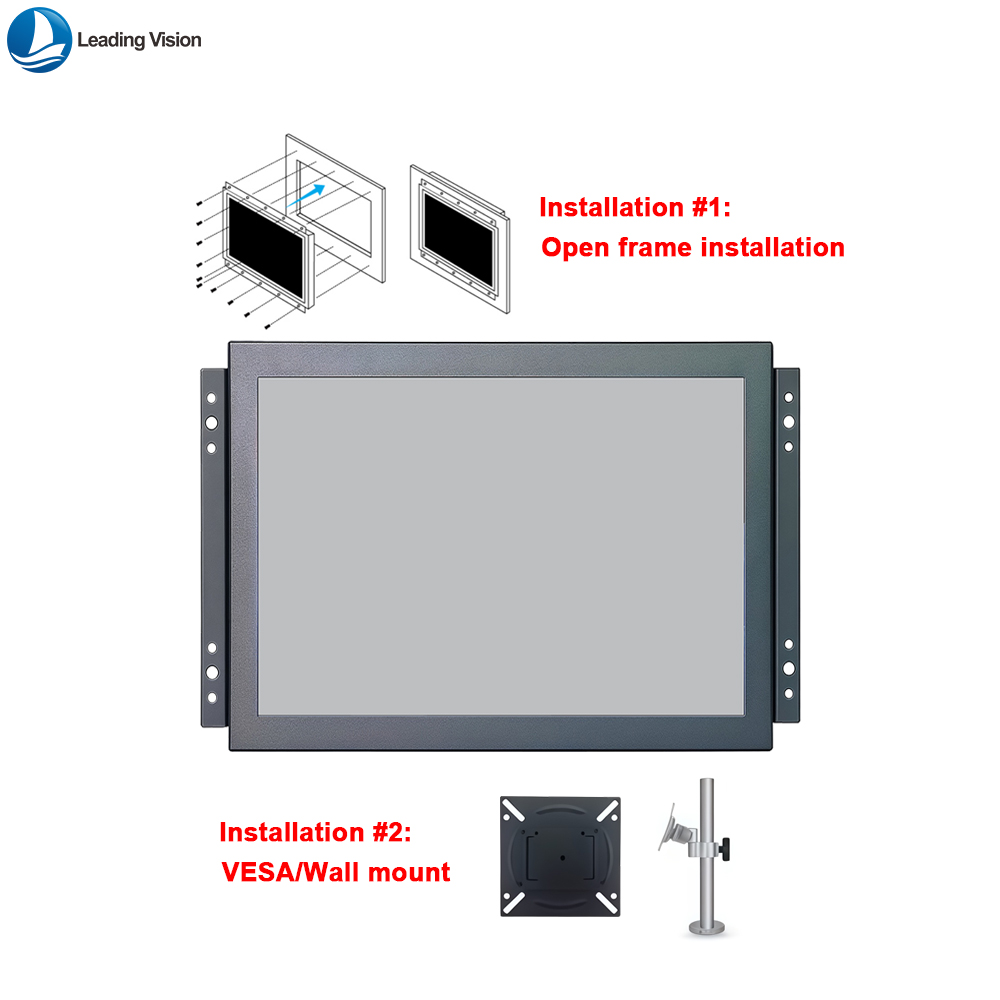

Installation: Open frame side brackets or VESA
Accessories: Power cord & adapter, VGA cable (DVI/HDMI optional)
