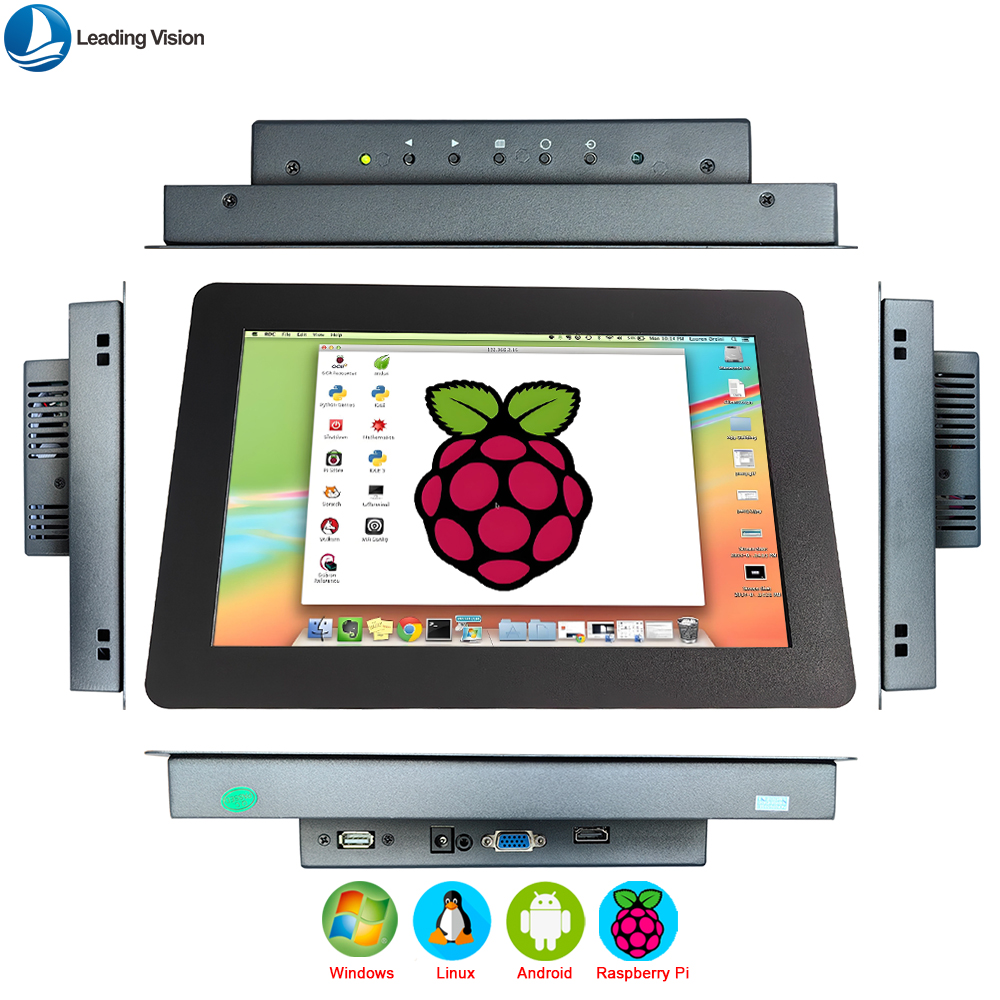

IR3 embedded resistive capacitive touch screen monitor

Monitor Highlights

• Popular sizes range from 8 to 21.5 inch.
• Touch options: Capacitive Touch, Resistive Touch, No Touch.
• Support multiple installations: Embedded panel mount, wall mount, and desktop.

• Working temperature:-10-60°.
• Certificates: CE, EMC, ROHS, FCC.
• Plug-and-play for Win7/Win8/Win10/Win11/Android/Linux/Mac OS.

Detail Specifications:

>>LCD Panel

• Screen Size:                8/10/10.1/11.6/12/13.3/15/15.6/17/17.3/18.5/19/21.5 inch
• Screen Resolution:   1024*768/ 1280*1024/1440*900/1920*1080
• Contrast Ratio:          1000 : 1
• Brightness:                 300 cd/m2 (high brightness optional)
• Backlight:                   LED Backlight
• Colors:                        16.7M
• Response Time:        8 ms
• Viewing Angle:          (H) 170°, (V) 160°

>>Touch Panel

• Touch Signal Input:     USB
• Touch Type:                  PCAP touch / Resistive touch / No touch
• Touch Response:         < 10ms
• Touch Hardness:          > 7H
• Touch Protocol:            HID protocol

>>Power & Signal

• Power Supply:               Input: AC 110~240V; Output: DC 12V/4A
• Power Frequency:        55~75 Hz
• Power Consumption:   25W
• Power Plug:                    US / EU / UK / AU,  and others

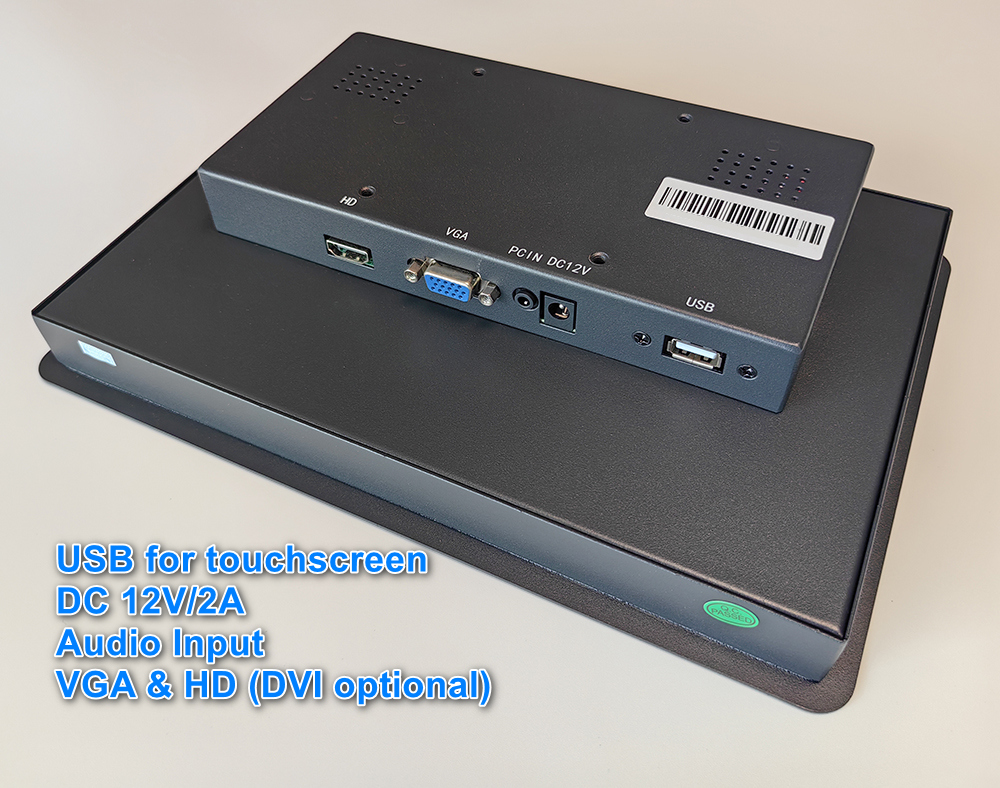

• Signal Input:                  VGA/ DVI/HDMI

>>Others

• Appearance:                  Open frame style
• Material:                        Metal + Glass + Plastic
• Temperature:               Operating: -10℃~60℃, Storage:-20℃~70℃
• Humidity:                      Operating: 20% ~ 80%, Storage: 10% ~ 90%
• Color:                             Black

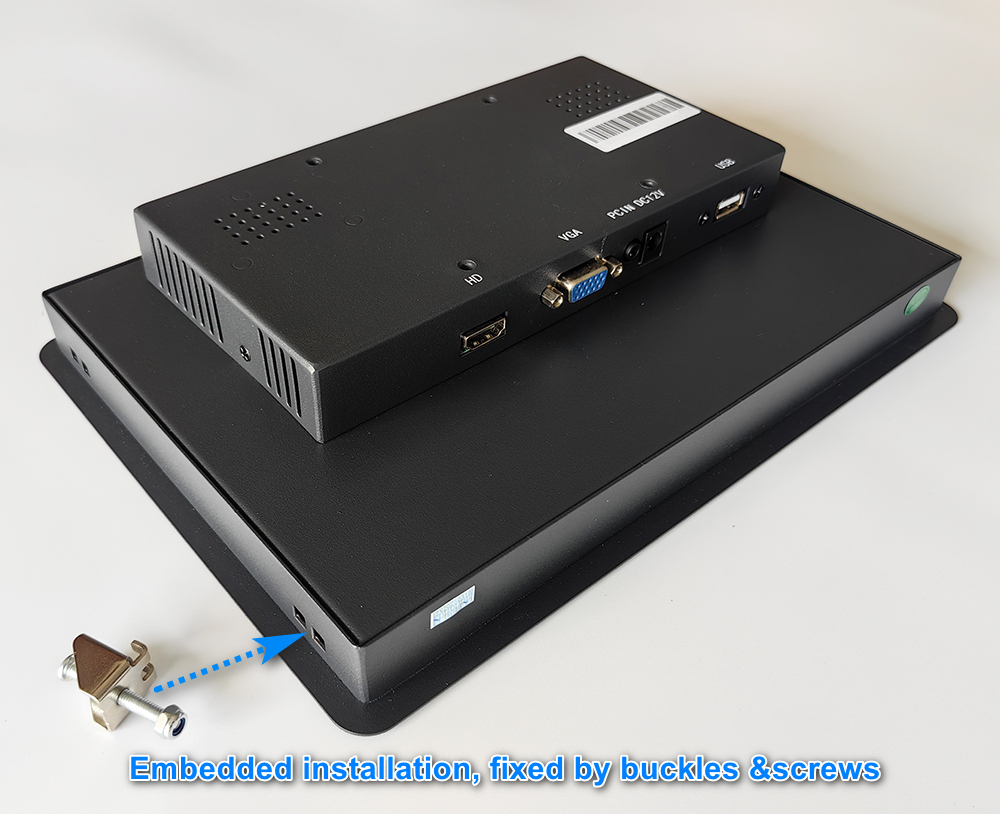

• Installation:                  Embedded panel mount / Wall mount / Desktop

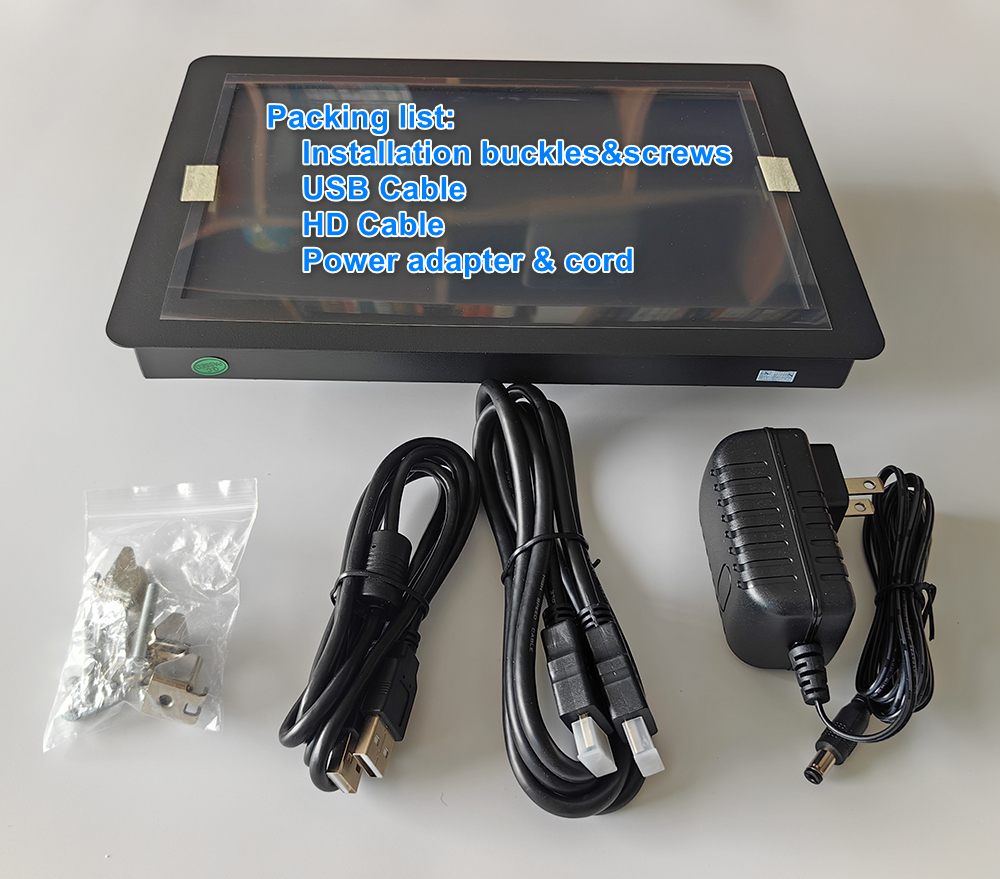

• Accessories:                  Power cord & adapter, VGA cable (DVI/HDMI optional)
